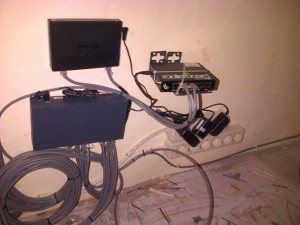

1000128_10201363586641240_2116616685_nTunick Service berkesempatan mengerjakan project pembuatan warnet/game. yang berada di daerah dalung. prosess pengerjaan sudah berjalan. lokasi project sangat strategis cocok untuk pembuatan warnet/game.

adapun perangkat yang di install dilokasi sebagai berikut ini :

  • 10 Computer Client
  • 1 Computer Billing
  • 1 Computer Server File
  • 1 hub HP 16 Port gigabit
  • 1 Hub D-link 8 port gigabit
  • 1 access point indoor 300mbps
  • 2 access point outdoor 300mbps
  • 1 router mikrotik 5 port gigabit

Perlengkapan Installasi :

  • STP 300 meter
  • NYM 3 x 2,5 60 meter
  • RG45 +- 50 biji
  • Stop Kontak 4 pin 11 buah
  • Stop Kontak 6 pin 2 buah
  • MCB 10A + box 1 buah
  • teas secukupnya
  • klem kabel 10mm dan 6mm secukupnya
  • kabel dak 3 meter

Spek Computer Client

  • AMD 270 AM3 3.3ghz
  • MB ASC
  • Ram 4GB
  • HDD 250GB
  • VGA 1GB Ati Radeon
  • Cassing Dazumba
  • LED 19″
  • Keyboard + Mouse Standard

Spek Computer Billing

  • Core i3 3.2Ghz
  • MB ASC
  • Ram 4GB
  • HDD 500GB
  • DVD RW
  • VGA 1GB Ati Radeon
  • Cassing Dazumba
  • LED 19″
  • Keyboard + Mouse Stgandard

Spek Computer Server File (Tower)

  • Core i3 3.2Ghz
  • MB ASC
  • Ram 4GB
  • HDD 1TB
  • DVD RW
  • VGA 1GB Ati Radeon
  • Cassing Dazumba
  • Keyboard + Mouse Stgandard

Setting

  • Mikrotik
    • Bandwidth Manager
    • Hotspot
    • Login form Halaman Hotspot
    • Firewall
  • Computer Client
    • Koneksi Klient
    • Intallasi OS
    • Installasi Software Sesuai Permintaan
    • Installasi Game
    • Installasi Billing Client
    • Setting Full Speed Bandwidth
  •  Computer Billing
    • Koneksi Billing
    • Intallasi OS
    • Installasi Software Sesuai Permintaan
    • Installasi Billing Server
    • Setting Billing Server
    • Share Printer
    • Setting Full Speed Bandwidth
  • Computer File Server
    • Koneksi Server
    • Intallasi OS
    • Setting File Sharing
    • Video Sharing
    • Software Sharing
    • Music Sharing
    • Setting Full Speed Bandwidth
    • Setting sesuai permintaan read only atay free copy.
  • Access Point
    • Metode Hotspot
    • DHCP Control By Mikrotik
    • Security Open

Demikianb rincian project Tunick Service. Apabila berminta membuat warnet dengan system seperti itu bisa hubungi kami.
